MIL-DTL-27189E
3.7 Lighting. The indicators shall be integrally lighted and shall meet all requirements specified herein. The
MS24576-1 indicator shall be lighted in accordance with MIL-L-25467 and the MS24576-2 and MS24576-3 indicators
shall be lighted in accordance with MIL-L-27160.
3.8 Pointer. The pointer shall be in accordance with figure 1 except that the length shall be such that the tip will
extend into the scale a distance equal to approximately one-third the length of the shortest graduation. The pointer
shall be suitable for integral lighting.
3.8.1 Pointer finish. The lighted portion of the pointer shall be finished in accordance with FED-STD-595, color No.
37875.
MASK 0.625 DIA MAX
109° ± 0.5
CL
MS
CL
0.094
Design Optional
Under Mask
0.3125
Dimensions In Inches Unless Otherwise Specified, Tolerances: Decimal 0.016

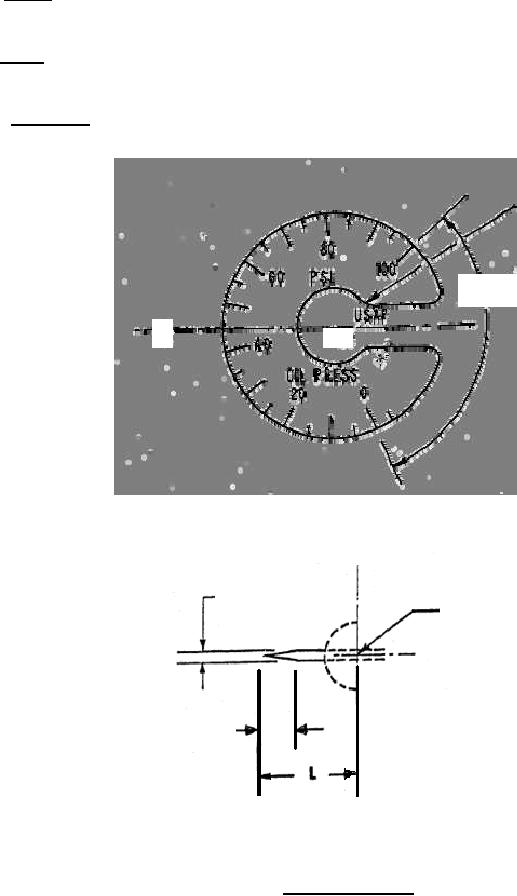

FIGURE 1. Oil Pressure Indicator
