MIL-DTL-27189E
3.11 Electrical wiring. The internal and external wiring shall conform to Figure 2. The internal wiring shall be color
coded and shall be connected to the receptacle pins as shown.

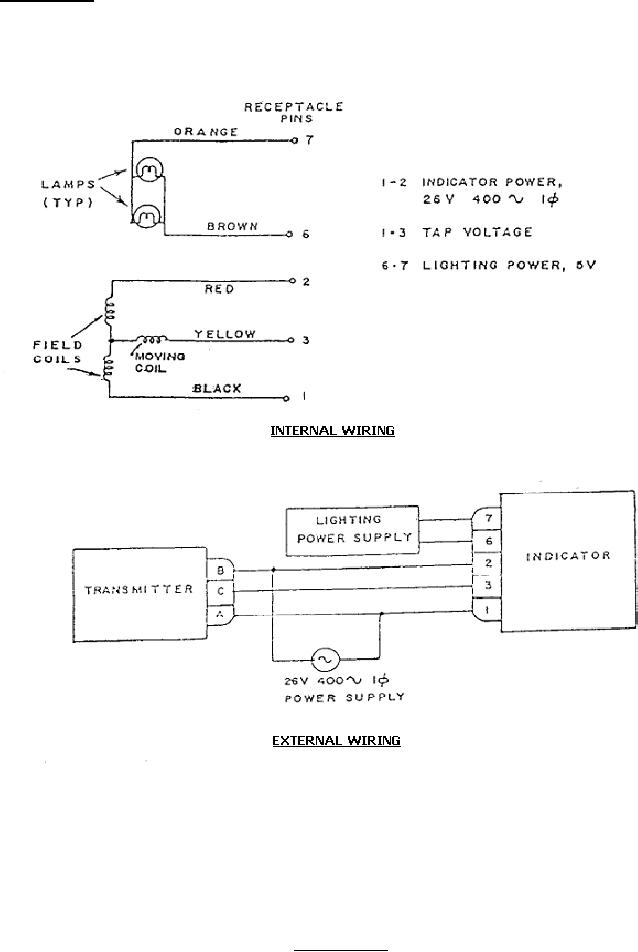

FIGURE 2. Wiring Diagram.
6
